Gates for the German Bundesbahn

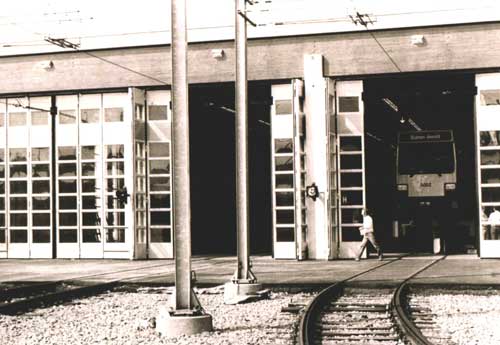

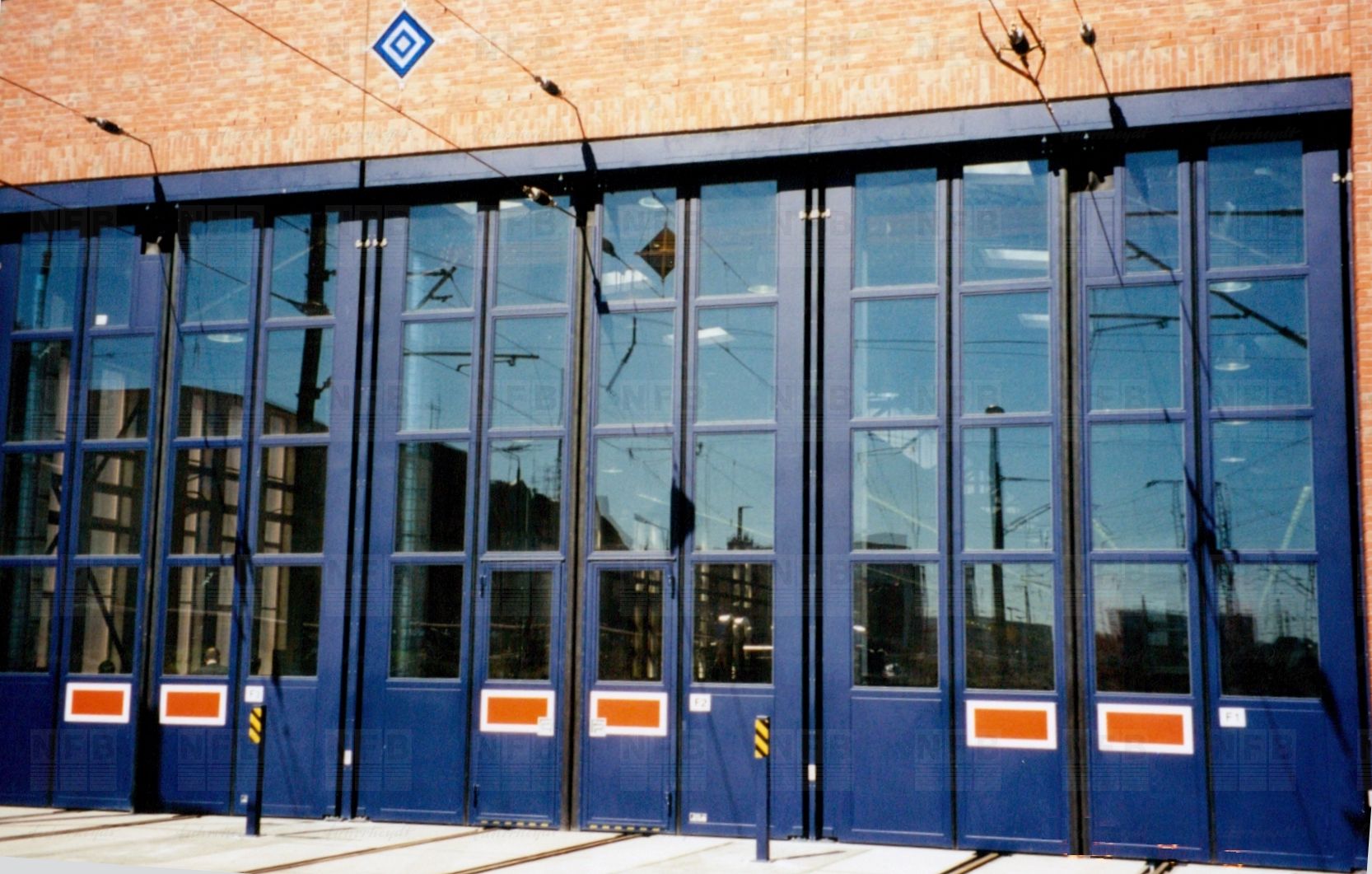

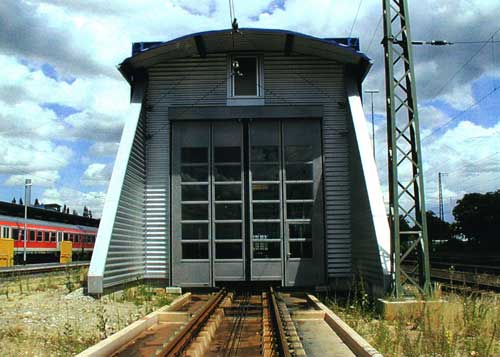

The basic construction of train railway /tram doors is a 4 wing folding door which is executed in a self supporting construction. The doors are in steel galvanised execution, ground painted and can be coated in RAL colours. Depending on this construction there is no lower track for the door which could hinder the rails of the train.

In addition there can be an upside window to let the train cables pass through the door (above the door or inside the door) which can be equipped with gfk-material (or different acc. to the choice of the customer)to have proper insulation .Earth leads between the door wings complete the safety feature in case of a cable failure.

The drive unit can be electro-mechanical, electro - pneumatical or electro-hydro-pneumatical. All systems are in use. Depending on the dimensions of the doors the opening speed is between 5 – 8 sec. All safety features for protection of persons are included and/or depend on the customer requirements. This applies as well for command units such as remote controls, radar, infrared etc. Unusual partition of the wings are possible on request.
